Question 1

What is GPR scanning and why is it important?

Accepted Answer

GPR (Ground Penetrating Radar) scanning is a non-destructive testing method that uses radar pulses to image the subsurface of concrete and ground. It is essential before any core cutting, drilling, or excavation to detect and avoid rebar, post-tension cables, electrical conduits, plumbing, and other embedded utilities. Without scanning, hitting a post-tension cable can cause catastrophic structural failure; striking an electrical conduit can injure workers and cause costly project delays. In Dubai and across the UAE, GPR scanning is a standard safety requirement for any concrete penetration work. Bhadeya Technical uses the Proceq GP8000, which provides real-time 3D imaging so findings are immediately visible on site, allowing your team to mark safe zones and proceed with confidence.

Question 2

How deep can your GPR scanner detect objects?

Accepted Answer

It depends on what we are scanning, because we operate two different machines. In concrete, our Proceq GP8000 scans up to 1.5 metres deep — more than enough to cover slabs, walls, beams and columns, where rebar and post-tension cables typically sit within the first 10–30cm. In ground and soil, our Proceq GS8000 reaches a maximum of 10 metres, and in UAE ground typically 5–10 metres depending on soil conditions: dry sand allows deeper penetration, while wet ground or heavy clay reduces it. That is the machine we use to locate buried utilities before excavation. Detection accuracy is within ±10mm under ideal conditions. Our technicians will advise during consultation if your site conditions — wet concrete, heavy rebar density, or saturated soil — are likely to affect the achievable depth or resolution.

Question 3

What sizes of core holes can you cut?

Accepted Answer

We provide diamond core cutting in diameters from 12mm to 500mm, covering virtually every construction and MEP requirement. Common sizes include 50mm for anchor bolts, 75mm and 100mm for electrical conduits, 150mm for drainage and plumbing penetrations, and 200mm to 300mm for HVAC ductwork and mechanical risers. Larger openings up to 500mm are used for structural openings and main service entries. All of our core cutting work is preceded by GPR scanning using the Proceq GP8000, so every hole is placed in a confirmed safe zone free of rebar, post-tension cables, and embedded utilities. We cut concrete, masonry, brick, and block at any angle — horizontal, vertical, or overhead — and clean up after every job.

Question 4

Which areas in the UAE do you serve?

Accepted Answer

Bhadeya Technical Services covers all six UAE emirates: Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, Fujairah, and Al Ain. In Dubai we serve all major districts including Downtown, Business Bay, DIFC, Dubai Marina, JLT, JBR, Palm Jumeirah, Deira, Al Quoz, and Dubai Investment Park. In Abu Dhabi we cover Abu Dhabi city, Yas Island, Saadiyat Island, Mussafah, and the industrial zones. We operate across Sharjah city, Al Hamriyah, and Sharjah industrial areas, and can reach Ras Al Khaimah, Fujairah, and Al Ain for larger projects. Our team is fully mobile — we come to your site with all equipment and provide same-day or next-day service for most Dubai locations. Contact us via WhatsApp with your location for an accurate arrival estimate.

Question 5

Is there a GPR scanning company near me?

Accepted Answer

If you are anywhere in the UAE, yes. Bhadeya Technical Services is based in Al Khabeesi, Deira, Dubai, and both our Proceq GP8000 concrete scanner and GS8000 ground scanner are kept here — so there is no waiting on equipment to be shipped in from outside the country. We are a mobile survey team rather than a fixed lab: we come to your site with everything needed to scan, mark and report on the same visit. We cover Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, Fujairah and Al Ain. For most Dubai and Sharjah addresses we can attend the same day — same-day service is available for Dubai projects booked before 12PM — and next-day mobilisation is normal for Abu Dhabi city and the surrounding zones. Our working hours are Sunday to Thursday 8:00 AM to 6:00 PM and Saturday 9:00 AM to 3:00 PM, and we reply to quote requests within 1 hour during those hours. Out-of-hours and night work in occupied buildings is arranged separately. Send your site address on WhatsApp and we will tell you honestly how quickly we can reach you.

Question 6

What equipment do you use for GPR scanning?

Accepted Answer

We operate two Proceq ground penetrating radar systems, each built for a different job. The Proceq GP8000 is our concrete scanner: it operates across a wide frequency range (200 MHz – 4 GHz), delivers real-time 3D visualization on an integrated display, scans up to 1.5 metres into concrete, and achieves positional accuracy within ±10mm. The Proceq GS8000 is our ground scanner, used for locating buried utilities before excavation: it uses stepped-frequency technology across a 0.2–3.4 GHz bandwidth and reaches up to 10 metres into soil depending on ground conditions. Both are manufactured in Switzerland, used by leading contractors and consultants worldwide, and regularly calibrated and maintained to manufacturer standards.

Question 7

How long does a GPR scan typically take?

Accepted Answer

Scan duration depends on the area size, slab complexity, and number of scan points required. A standard single-zone slab scan of 20–30 m² takes 1–2 hours including site setup, scanning, data analysis, and surface marking. A typical floor plate of 200–500 m² may take a full working day. Multi-floor projects are scheduled across consecutive days. For urgent pre-drilling scans — where a contractor needs a single penetration point confirmed — we can often complete the scan, mark the safe zone, and issue a report within 2 hours of arrival. We provide a time and cost estimate before mobilising so you can plan your crew accordingly. Same-day service is available for Dubai projects booked before 12PM. Contact us on WhatsApp with your scan area and location for a specific estimate.

Question 8

Is GPR scanning safe?

Accepted Answer

Yes, GPR scanning is completely safe and non-destructive. The Proceq GP8000 uses low-power electromagnetic pulses in the radio frequency range — similar in principle to Wi-Fi signals — and emits no ionising radiation whatsoever. Unlike X-ray concrete scanning, GPR requires no radiation shielding, no area clearance, and no special safety permits. Operators, nearby workers, building occupants, and the structure itself are all unaffected. The scanner surface never makes contact with the concrete under test — it glides across it — so there is zero damage to finishes, coatings, or waterproofing membranes. GPR scanning can be performed in occupied buildings, hospitals, data centres, and sensitive environments without disruption. It is recognised as a safe non-destructive testing method under ACI 228 and EN 13290 international standards.

Question 9

Do you provide reports after scanning?

Accepted Answer

Yes. Every scan job includes a professional report delivered in PDF format, typically within 24 hours of the site visit. The report includes annotated plan drawings showing the location, depth, and orientation of detected objects (rebar, post-tension cables, conduits, voids), colour-coded safe drilling zones marked directly on the concrete surface, depth measurements for each identified object, and clear recommendations for where cutting or drilling can safely proceed. For Proceq GP8000 scans we can also export 3D rendered data via the Proceq Link platform, which is compatible with BIM coordination workflows. Physical surface markings are applied on the day of the scan using paint or chalk, and remain visible for the duration of your drilling or cutting works. Reports can be provided in both English and Arabic on request.

Question 10

Do you scan before core cutting?

Accepted Answer

Yes — always. GPR scanning before core cutting is a non-negotiable safety standard at Bhadeya Technical and is strongly recommended by UAE construction safety authorities. Concrete slabs in UAE high-rise and commercial buildings almost always contain post-tension cables, which are under extreme tension (typically 140–200 kN per strand). Accidentally cutting a post-tension cable can cause immediate slab collapse, endangering lives and causing severe structural damage that costs far more to repair than the original project. Our integrated scan-then-cut workflow means our technician scans the target area first, marks all safe drill points on the surface, and only then do we proceed with core cutting — giving you and your structural engineer full confidence that every hole is placed safely.

Question 11

Do you provide GPR scanning services in Dubai?

Accepted Answer

Yes — GPR scanning in Dubai is our core service and primary market. We operate across all Dubai districts including Downtown Dubai, Business Bay, DIFC, Dubai Marina, Jumeirah Lake Towers, Palm Jumeirah, Dubai Hills, Al Quoz, Deira, Bur Dubai, Dubai Investment Park, and Dubai South. We have completed GPR scanning projects at The Dubai Mall, Kempinski Hotel, The Edition Hotel, Emaar developments, and hundreds of residential and commercial towers across the emirate. Both our Proceq GP8000 concrete scanner and GS8000 ground scanner are based in Dubai, enabling same-day response for most locations. We provide fixed-price quotes with no surprise charges, and our reports meet the documentation requirements of Dubai Municipality and most main contractor QA systems. To book a scan in Dubai, send your location and scan area via WhatsApp and we will confirm availability and pricing within 1 hour.

Question 12

Do you provide services in Abu Dhabi?

Accepted Answer

Yes. Bhadeya Technical provides GPR scanning, core cutting, excavation, and interlock and road pavement services across Abu Dhabi emirate including Abu Dhabi city, Yas Island, Saadiyat Island, Al Reem Island, Mussafah, Khalifa City, and the industrial zones. We have completed major projects including ADNOC Headquarters, Al Dar Properties developments, and Sheikh Khalifa Hospital. For Abu Dhabi projects, we typically mobilise same-day or next-day depending on location. Our GPR scanning reports meet the documentation standards required by Abu Dhabi government projects and ADNOC supply chain requirements. Contact us via WhatsApp with your project location in Abu Dhabi for a same-day quote and availability confirmation.

Question 13

Do you scan the ground before excavation?

Accepted Answer

Yes — always. Before we excavate, we scan. Every excavation job begins with a GPR survey of the dig area using our Proceq GS8000 ground scanner, which reads up to 10 metres into the soil depending on ground conditions. We locate and mark buried power cables, water and sewer lines, telecom ducts, gas pipes, tanks and voids on the surface, and agree the safe dig limits with you before any machine breaks ground. Striking a live service during excavation causes injuries, utility shutdowns, authority penalties and repair bills that dwarf the cost of a scan. Because scanning and excavation are both done in-house by Bhadeya Technical, there is no waiting on a third-party surveyor and no gap in responsibility between the survey and the dig.

Question 14

What is the difference between the GP8000 and the GS8000?

Accepted Answer

They are two different machines for two different jobs. The Proceq GP8000 is a concrete scanner — it images the inside of slabs, walls, beams and columns to find rebar, post-tension cables, conduits and voids, with a scanning depth of up to 1.5 metres in concrete. It is what we use before core cutting or drilling. The Proceq GS8000 is a ground scanner, mounted on a survey cart — it maps buried utilities in soil to a maximum of 10 metres depending on ground conditions, covering large areas such as roads, yards and open sites quickly. It is what we use before excavation. Bhadeya Technical operates both, so whether the target is concrete or ground, the correct instrument is used rather than the nearest one available.

Question 15

Do you provide interlock and road pavement works?

Accepted Answer

Yes. We lay, repair and re-level interlock paving and carry out road pavement works for driveways, parking areas, warehouse yards, walkways and internal site roads across the UAE. This includes excavation, sub-base preparation and compaction, kerbstones and edge restraints, accurate levels and falls for drainage, block cutting, and reinstatement of sunken or uneven paving. Most interlock failures are sub-base failures, not tile failures — paving sinks because the ground beneath it was never compacted or levelled correctly. Since we handle the excavation, ground scanning and compaction ourselves, the layer that actually carries the load is done properly, and you deal with one contractor from the dig to the finished surface.

Question 16

How much does GPR scanning cost in Dubai?

Accepted Answer

Cost is driven mainly by the area that needs scanning rather than the number of holes, because clearing a single position still means scanning a zone around it. Twenty penetrations clustered in one bay are far cheaper per hole than one isolated core in a large floor plate. The other factors that genuinely move the price are access and mobilisation — a ground-floor warehouse in Al Quoz is a different job from level 34 of a Business Bay tower — whether the work has to happen outside trading hours in an occupied building, what documentation you need at the end, and how urgently you need us. To give you a number that will not change on site we need the address and floor, roughly how much area is involved, what the element is, whether the building is occupied, and your date. Send that on WhatsApp and we will quote against it.

Question 17

How quickly can you get to site?

Accepted Answer

For most Dubai and Sharjah locations we can attend the same day or the following morning, and next-day is normal for Abu Dhabi city and the surrounding zones. The realistic constraint is usually not our availability but the site itself: where a permit to work is required — common on ADNOC, government and larger Abu Dhabi projects — the approval process sets the timeline, and where gate passes or site inductions are needed we arrange those before mobilising rather than losing a day at the gate. Tell us the site and your date and we will tell you honestly whether it is achievable.

Question 18

Can you scan or cut in an occupied building or outside working hours?

Accepted Answer

Yes, and a large share of our Dubai work is exactly this — trading malls, live hotels and occupied offices where the work has to happen at night or during shutdown windows. GPR is well suited to it because it is non-destructive and needs no exclusion zone or radiation shielding, unlike X-ray, so adjacent areas can stay occupied while we scan. For core cutting in occupied buildings we manage slurry and water containment so the area can be handed back clean and in use the following morning. Where the building requires a permit or a security escort for out-of-hours access, we work to that process.

Question 19

What happens if you find a cable exactly where we need to cut?

Accepted Answer

We stop and tell you before anything is cut. In most cases the position can be shifted by a small amount to clear the obstruction, and we mark the nearest safe alternative directly on the surface so your crew can proceed the same visit. Where the position genuinely cannot move — a fixed MEP penetration or a structural opening — that becomes a design conversation with your engineer or consultant rather than something we cut through and report afterwards. We would rather deliver an inconvenient finding than a convenient one that turns into a structural incident.

Question 20

Is GPR better than X-ray for concrete scanning?

Accepted Answer

For most UAE concrete scanning, yes — but not universally. GPR works from a single accessible face, needs no radiation exclusion zone, and gives real-time results the operator can mark straight onto the slab, which is why it has largely replaced X-ray on occupied buildings, ground-bearing slabs, rafts and retaining walls where X-ray is either impractical or impossible. X-ray does produce a clearer image in very heavily congested reinforcement, and is better at separating objects stacked directly above one another, but it requires access to both faces of the element and the area must be cleared on both sides. If you can reach both faces, clear the area, and need to resolve fine detail in congested concrete, X-ray will give the better image. For everything else, GPR is the appropriate method.

GPR Scanning, Core Cutting & Excavation in the UAEKnow what's beneath before you cut.

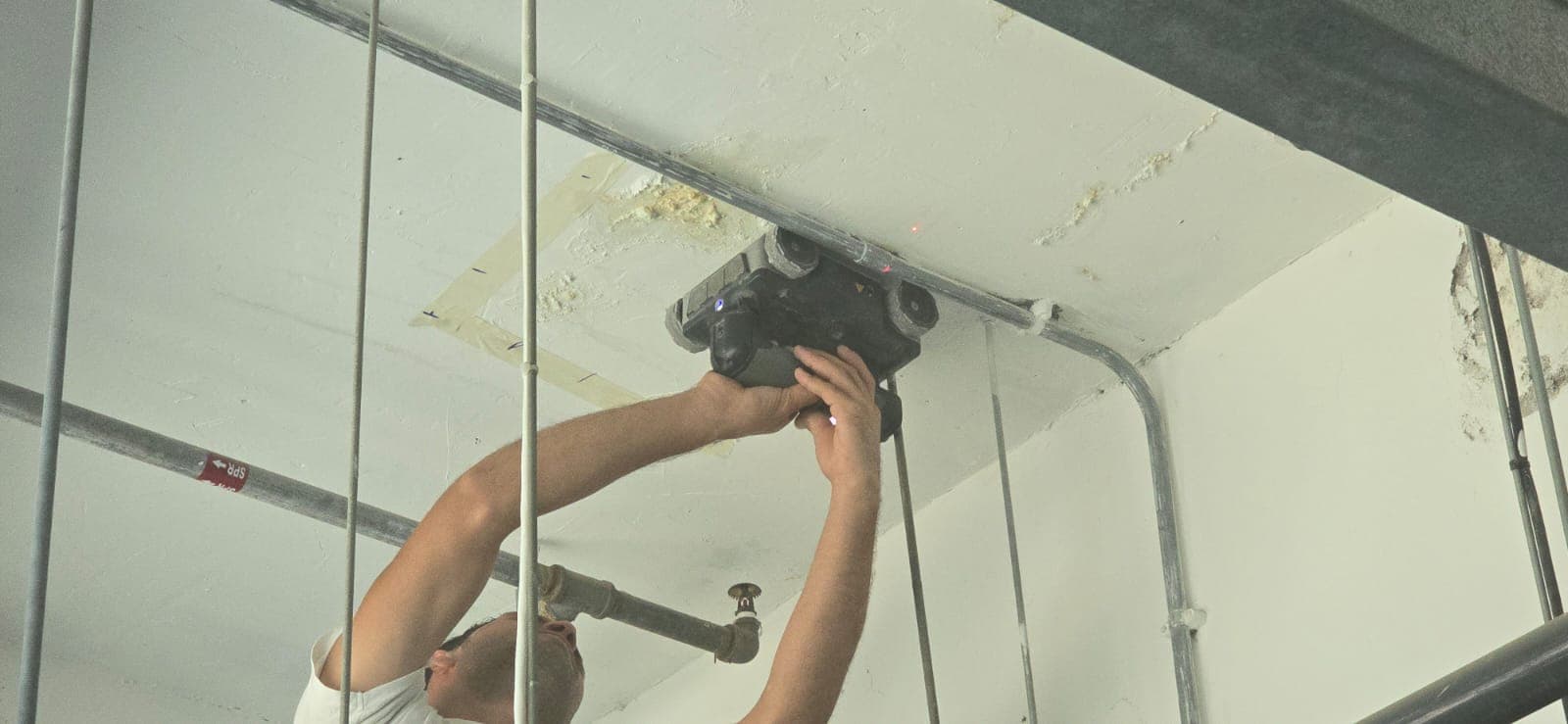

GPR Concrete Scanning

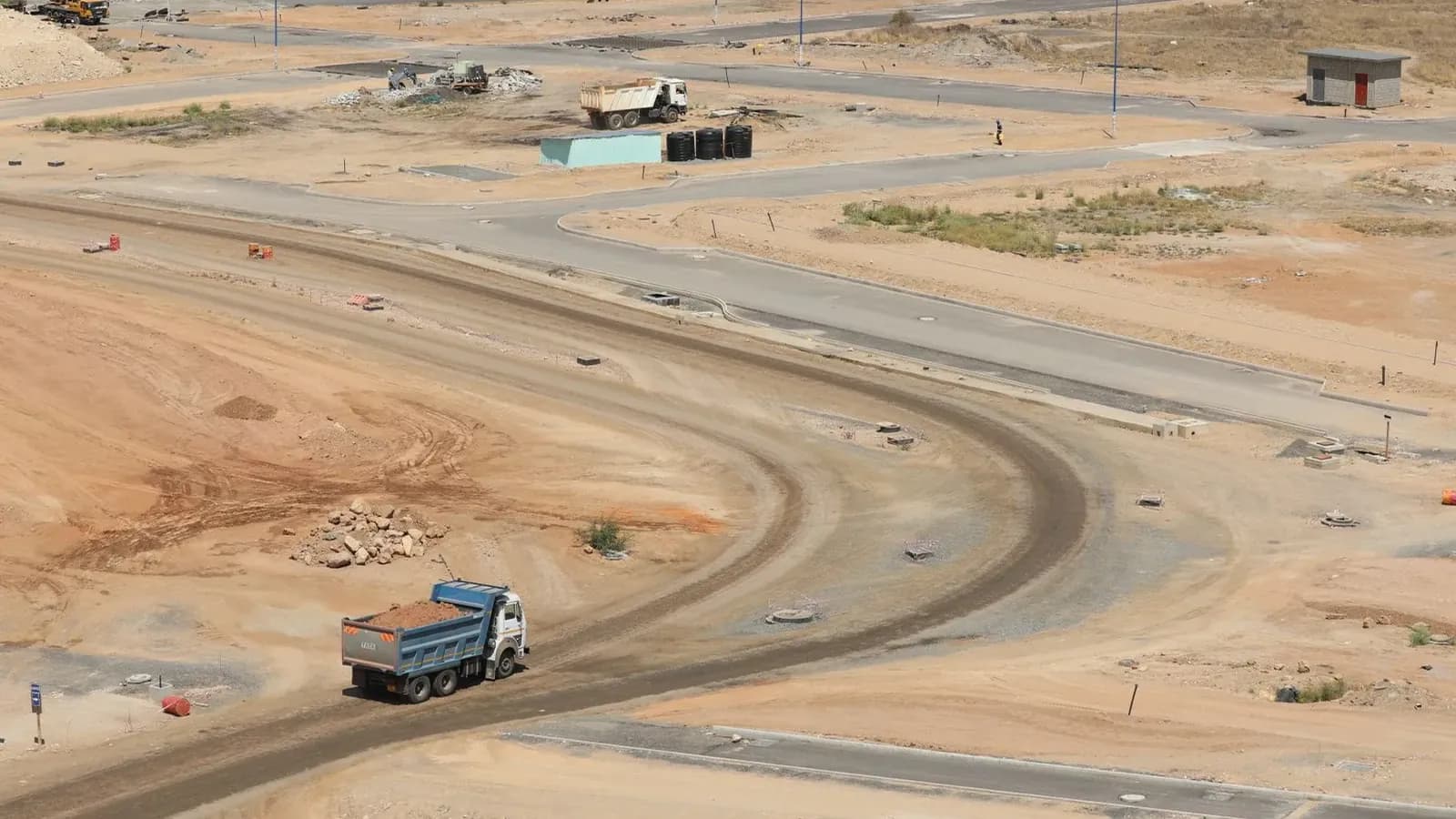

GPR Ground Scanning

Core Cutting

Excavation

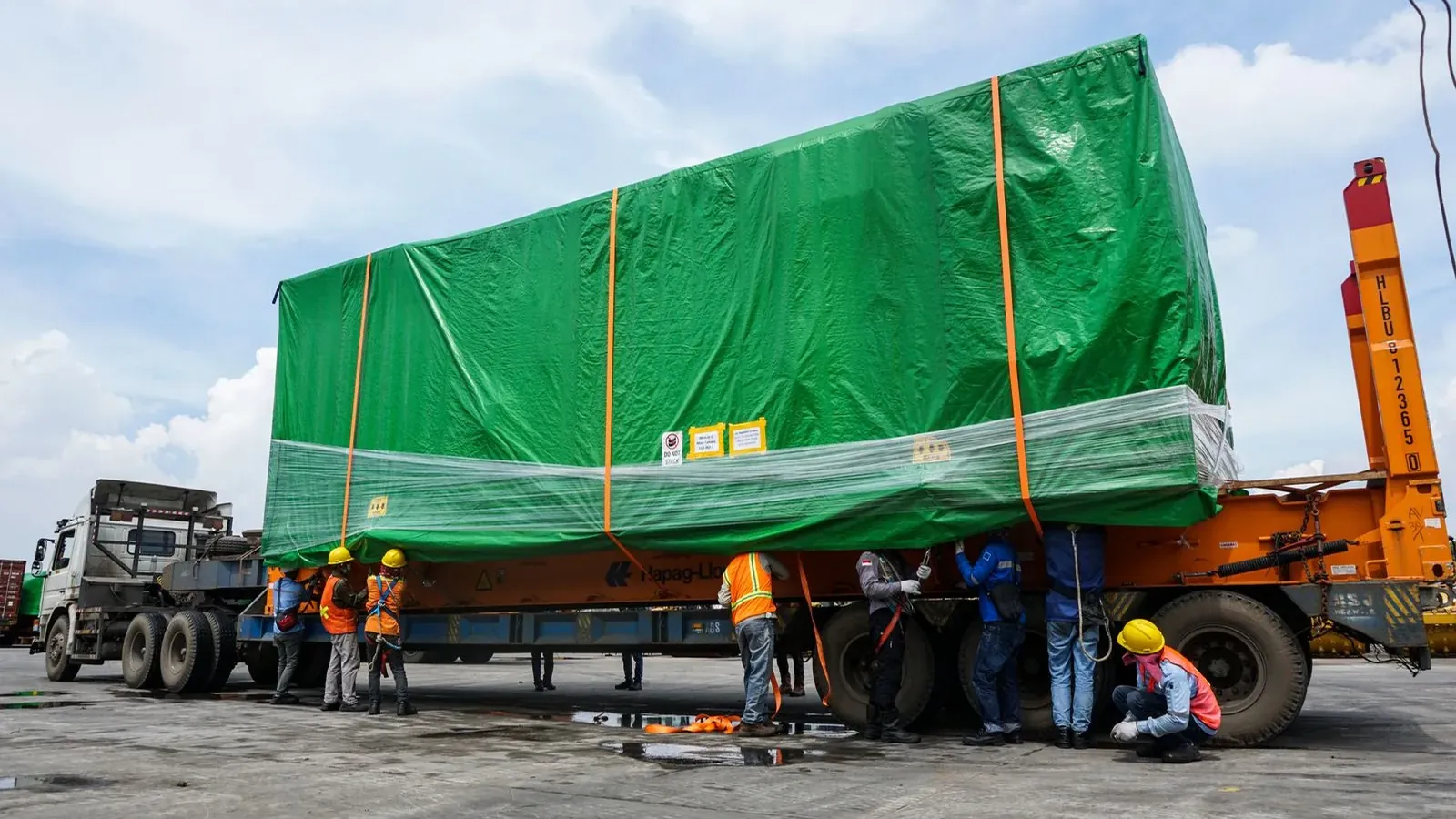

Oversized Cargo Movement

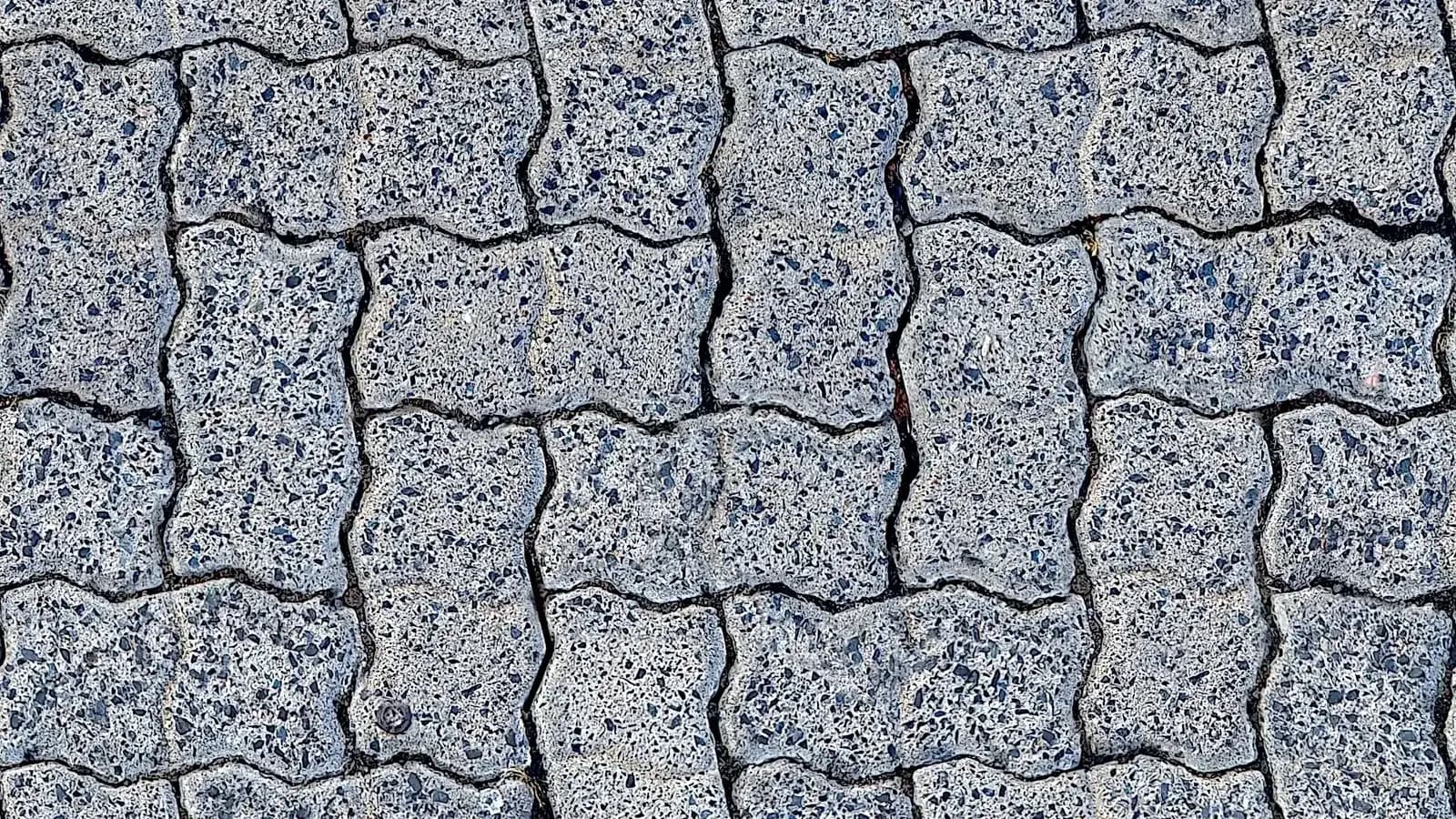

Interlock & Road Pavement
